LED Drivers

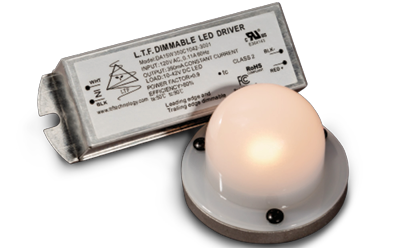

LTF Technology QLUXCOBI1512932W-KT - 1000 Lumen Omnidirectional COB LED & 15W Driver, CRI 95+, Dim-to-Warm CCT 3000K dims to 1800K. Wattage 12W, Typical Forward Current 350mA, Typical Lumens 1000 lm.  High Color Rendering Indes (CRI) 95+, R9 95+.  Works with standard driver and dimmers.  LM 80s Compliant LEDs.

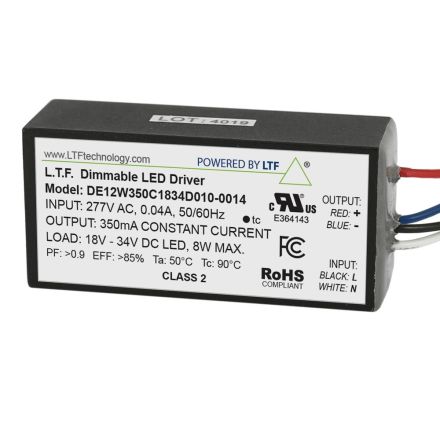

LTF technology LED driver Model DE12W350C1834D010-0014.  LTF LED Constant Current DC driver with 277V AC Input Voltage, 12W Wattage, 350mA Output Voltage with 18V-34V DC Output Current.  This model comes in B5 form factor.  See image and product specification link for more info.  Features; Auto-reset; Short circuti, Overload and Thermal protection.  Aluminum casing for optimal heat dissipation.  Flicker free dimming and exellent dimming range.  Class 2 power supply.  Efficient, high power factor, low THD, FCC compliant.  Has 0-10 dimming capabilty.

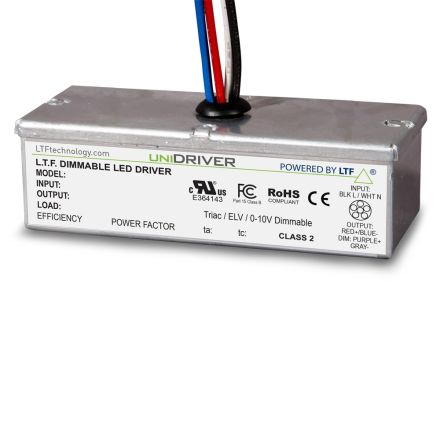

LTF Technology All-In-One Dimmable LED Universal Driver.  All-In-One dimmable capablities with Triac, ELV and 0-10V dimming. 25W Universal Input Voltage; 100 - 305V AC.  Output Voltage 24V DC with Output Current of 1100mA. Comes in BF1 case. Model DS25W24VBF1UD.

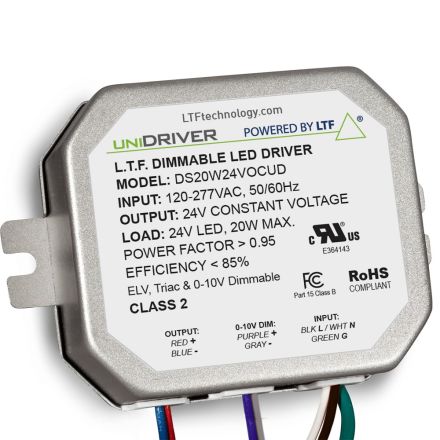

LTF Technology Universal LED Driver Model DS20W24VOCUD.  Universal Input 100-305V AC series.  LTF Tri Mode Dimming at all input voltages Triac, ELV & 0-10V in F3 case.  Flicker free dimming.

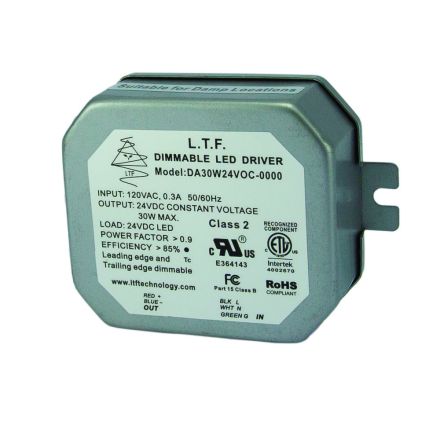

LTF dimmable low voltage LED driver. 30W Model # DA30W24VOC (DA30W24V in F3 case) Input Voltage: 120V AC 50/60 Hz Input Current: 0.25 A Output Voltage: 24V DC Output Current: 1250 mA Available Form Factors: F3 - Case dimensions: 71.6X62.6X30mm.

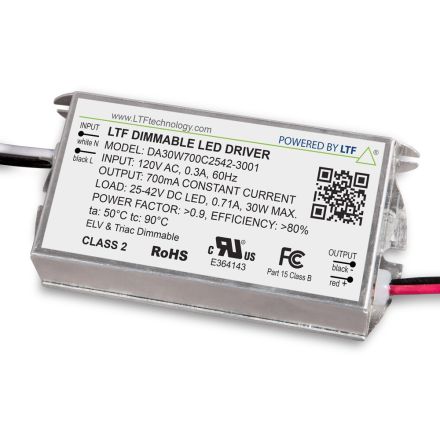

LTF Technology Constant Current Constant Voltage LED Driver model DA30W700C2542-3001.  Dimmable with ELV and Triac dimmers.  Isolated output power per NEC and UL safety requirements.  Auto-reset; Short circuit, overload and thermal protection.  Low profile, small form factor.

LTF Dimmable LED Driver model DA40W24VOC in F3 case.  Specification 40W with Input voltage 120V, Input current, 0.33 A, Output voltage 24V DC, Output current 1700 mA, available in F3 form factor.  Dimensions 89.6mm X 62.6mm x 30mm.

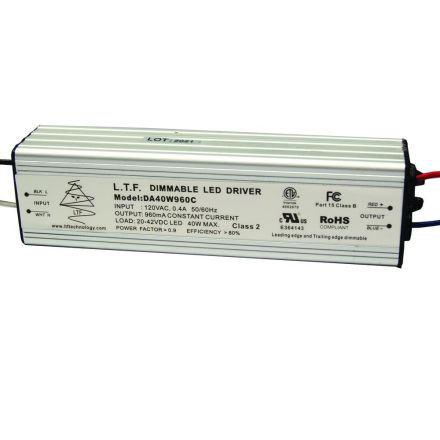

LTF Technology LED driver model DA40W960CL1, 40W, 120v AC.

Input Voltage: 120V AC/ 50/60 Hz

Input current: 0.33 A

Output Current: 960 mA

LTF Technology, Constant Current/Constant Voltage LED Driver Model DA40W700C3655-3001.  Dimmable with ELV ant Triac Type Dimmer.  40 Watts, Input Voltage 120V AC, Input Current 0.33 A, Output Voltage 57.2V DC, Output Current 700mA.

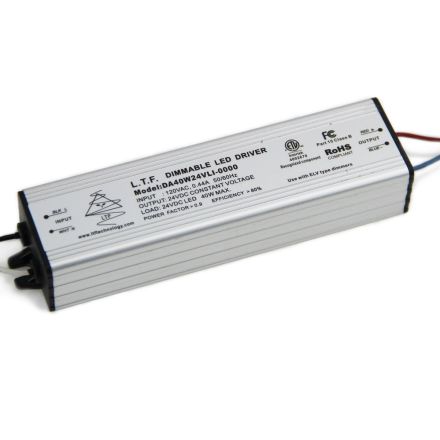

LTF Dimmable LED Driver model DA40W24VLI in F2 case.  Specification; 40W with Input Voltage 120V AC, Input Current 0.33 A, Output Voltage 24V DC, Output Current 1700mA, available in F2 form factor.  Dimensions 148 (138) x 39 x 24.4mm.

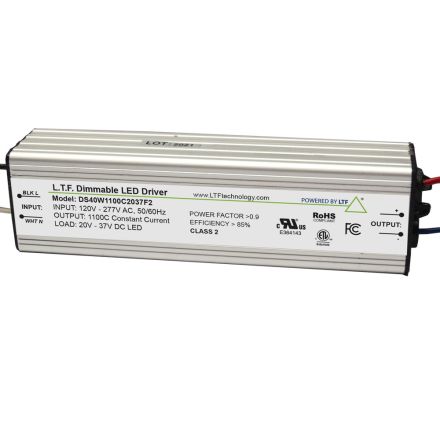

LTF Technology Universal LED driver model DS40W1100C2037F2.  Universal input voltage; 120-277V AC, 40W Wattage, with Output Voltage of 20V - 37V DC and Outpurct Current of 1100mA.  Features : Auto-reset; Short circuit, overload and thermal.  Superior thermal performance.  Aluminum case with high W/m.k encapsulating.  This constant current unversal driver comes in F2 form factor.

LTF Technology Class 2 Power Supply model DS60W24VBR2UD-3002. Input voltage 120V-277V AC 50/60Hz. Wattage 60W with 24V DC Output Voltage. Load: 24V DC LED 2.5A Max. BR2 form factor with Dimensions 144 (170) x 50 x 28mm. IP65 Rating.

LTF technology high performance LED driver inside indoor remote enclosure box. Model: LDS60W24VBR2UDRE Constant Current: 60W Input Voltage: 120-277V AC 50/60Hz Output Voltage: 24V DC, Load: 24V DC LED 2.5A Max. Form Factor: BR2 with dimensions 160 (135) x 57 x 37mm inside a G2 (Damp Rated) Remote Enclosure (RE) dimensions 233.1 x 85.5 x 48.9mm.

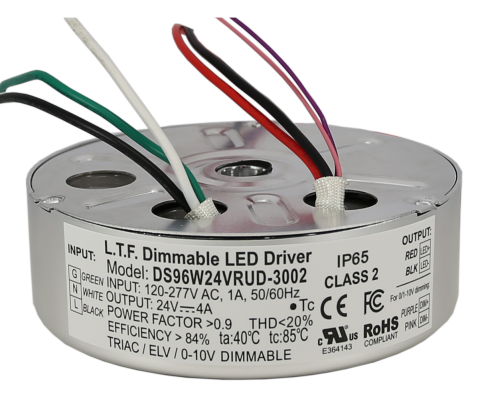

LTF Technology High Performance LED Driver model DS96W24VRUD-3002.  DS 96W 120-277V AC 3002.  IP Rating IP20, IP65, IP67.  Dimmable with Triac and ELV dimmers.  Round Case, R6 case: 125mm x 40mm.

LTF Technology, DS series LED driver model DS96W24VND-0020.

Output Voltage: 24V DC

Maximum Output Current: 4000mA

Minimum Output Current: 230mA

Output Power: 100W

LTF Technology, DS series LED driver model LDS96W24VNDRE-0020.

Output Voltage: 24V DC

Maximum Output Current: 4000mA

Minimum Output Current: 230mA

Output Power: 100W

G2: RE metal box dimensions: 233.1x85.5x48.9 mm

High Performance LTF LED driver model DS96W24VBR1UD-3002.  Universal Input Voltage of 100-305V.

Input Voltage: 100-305V AC

Wattage: 96W

Output Voltage: 24V DC

Output Current: 4000 mA

Form Factor: BR1

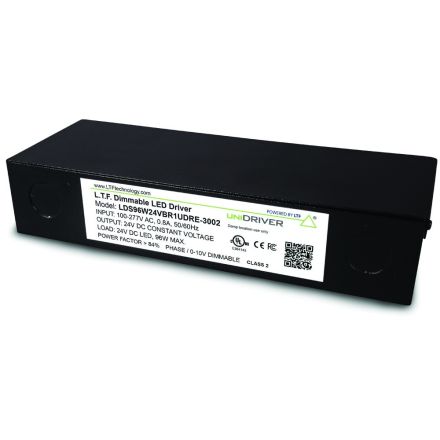

LTF technology high performance LED driver inside indoor remote enclosure box. Model: LDS96W24BR1UDRE-3002 Constant Current: 96W Input Voltage: 120-277V AC 50/60Hz Output Voltage: 24V DC Output Current: 4000mA Form Factor: BR1 with dimensions 194 (172) x 57 x 37mm Remote Enclosure (RE) dimensions 233 x 85.5 x 49mm Form Factor: G2 (damp location)

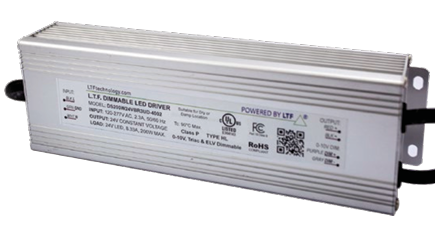

LTF LED model LDS200W24VUD-4002R1. LTF LED 200 Watt constant voltage electornic with 24V DC Output Voltage.  Universal Input 120V-277V AC Input Voltage.
