TA150W24VOCC

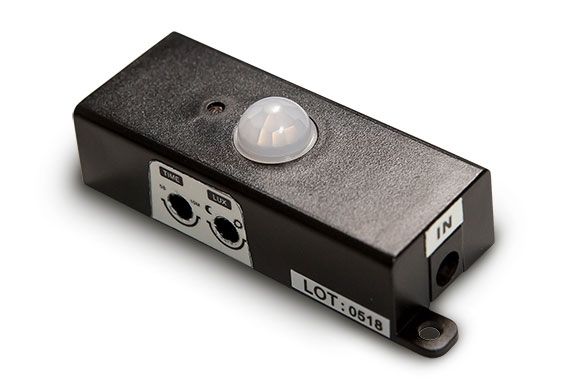

LTF Technology Passive Infrared occupancy sensor Model TA150W24VOCCBL (black finish). Available Form Factors: OCC, Dimensions "85.1 x 28.58 x 23.5mm".
Electrical Specifications:
Detecting Mode: Movement
Detecting Theory: Passive Infrared Rays
Detecting Range: 6 Meters
Detecting Angle: 120°
Light Control Reaction: 5LUX - 2000LUX (adjustable)
Working Voltage: 24V DC
Power: <0.1W
Load Capability: 150W, 6.25A max.
Load Type: LED Lighting
Ambient Temperature: -20°C - +50°C
LTF Technology Passive Infrared occupancy sensor Module TA150W24VOCCBL(black finish). This model is an infrared control product with a unique and slim line from factor. LTF unique design to detect and control low voltage lighting systems. This product is a great addition o any low voltage light system for convenience, safety and energy saving. The switch will connect the load to make it work automatically when occupants enter the detecting area. The light will stay on if there is motion in the detected area and light turns off when no motion is detected. Great for safety and energy savings.
